- S -

SCHARDT, Josef

Former German retailer of stationary articles located in Nuremberg. This special issue for the years 1914/15 comprises compasses from several famous compass makers (Busch, Muller & Vaucher, C. Stockert, ZIKO).

Cover Click on image for enlarged view of page 1

Example : pages 10-11 Bottom right: a compass from the Swiss maker Muller & Vaucher Click on image for enlarged view

Technical data - Dim. : 297 x 225mm - 16 pages The image on the cover represents a dispatch rider (Meldereiter) delivering a message to an officer. This new unit had been created in 1895.

SCHLAGINTWEIT

The name M. SCHLAGINTWEIT is printed on this compass. It is called in German Routenkompass but this special designation was not successful. Such instruments are usualy called Marsch- or Wanderkompass. The peculiar design was no success either: the marching course arrow is engraved and divisions (every 5°) are only given for a quadrant (90°) on either side of it. If Magnetic North is located in this area, its relative position to the user and the desired course is clear but otherwise one has to calculate its position on the base of the needle's south end which is really not practical. However, the needle's cap features two winglets marked W and O (West and East) so as to find out which end of the needle points north. Moreover, the south end features a counterweight pin. On the reverse, probably an owner engraved his name and a date: J. M. 1914/15.
Techn. Data: Diam.: 2" / 50mm. No luminous paint but a highly reflective metallic coating (link to pic.) of the course arrow. Manufacturer (s. name in dial centre): Johannes Greiner¹ - München (Munich). The abbr. D.R.G.M. means that the compass was designed after 1st Oct.1891.
Concerning the inventor: There were three brothers, Hermann, Adolf and Robert Schlagintweit (link to portraits © DAV) were researchers living in Munich, Germany. Influenced by Alexander von Humboldt, they went on an expedition in the Himalaya and the Karakorum mountains in 1854 and were the first to bring back information about Cashmere, Ladakh, Sikkim and Kumaon. The German alpine climbers club (DAV) dedicated to them an exhibition in 2015. They were not married and had no children. Possibly, the compass designer's first name (M.) was that of Max August Schlagintweit (b. 13 Oct.1849 - d. 1935) Premierlieutnant in Munich, later Artillery Major, a half-brother born in the 3rd marriage of their father, the ophtalmologist August Schlagintweit.

(1) The Deutsche Museum in Munich possesses a company's news letter published by Johannes Greiner München. The company itself is still listed in the city's addresses book for 1900: Johannes Greiner, Präcisions-Glasinstrumente-Fabrik (proprietor Fritz Greiner), Müllerstr. 8, München, shop in the Neuhauserstr. 49.
Source: German DAV Alpine Museum:

Back to ALPHABETICAL SEARCH (Pocket compasses)

SCHMID

This instrument called Waldbussole (forest compass) was made in 1911 by GOERZ. Function similar to KRÖPLIN and A. & N. AUX. One must take the needle and pointer assembly out of the capsule and set the marching course angle on the map (see user instructions at right).

SCHWAB & WUISCHPARD

Former U.S. company (for more information click HERE).

Click on the picture for an enlarged view (Picture Wayne SVDP/Tacoma)

Technical Data - Diameter: ... mm - Depth: ... mm - Weight: ... gr - Markings: dots of Radium-compound paint by E, S & W cardinals, a triangle by North, and on both ends of the needle (longer by North). - Manufactured approx. WWII

Scoutism

Youth organisations like Girl and Boy Scouts have always been a good market for compass manufacturers which designed especially for them simple instruments although some reach the same precision level than military marching compasses. The manufacturers represented in this museum are Barker, SILVA, Taylor, Kröplin, Collignon-Houlliot (s. a. Mle 1922), Busch, U.S. Gauge.
A special mention should be made of the Trail-Blazer dubbed wrist compass, the Pathfinder and the sun watches.


Pic at left : Pocket watch with a tiny compass on the reverse and German the words Pfadfinder Allzeit bereit i.e. Scouts Be Prepared (Swiss patent no. 61471 by Schlenker & Kienzle, 1912 for a watch and compass with luminous markings).



Orienteering Merit Badge (U.S. Boy Scouts)	Map and Compass Belt Loop (U.S. Cub Scouts)	Germany (Depicts a compass rose with a boy standing with a map in his hands in the center)	Germany xxx	Switzerland
Belgium	France (surveyor 1)	France (surveyor 2)	France (cubs)	The museum's creator as a cub scout in Marseilles (at r. in 1957) together with members of his patrol

BOY & GIRL SCOUTS TOY COMPASSES - 1. MYSTERY COMPASS - 2. SNOOPY COMPASS

1. Fantasy version of a WWII "escape compass" concealed in a uniform button This item was offered in the 1950 Johnson Smith NOVELTIES catalog (link to pic.)	Item dismantled to show all parts Click on the image above to see all parts	The page in the NOVELTIES catalog where this compass is displayed also described three other compasses  (see pic at right) - Luminous Pocket Compass - Mariner's Style Wrist Compass - Pocket Stop Compass	All pictures by courtesy of M. McPherson
2. SNOOPY as a "BEAGLE SCOUT"	Hunter-type compass Pictures and text by courtesy of Fandom, Peanuts Wiki	Beagle Scouts was a reoccurring theme that Charles Schulz used in his comic strip. The various comics and memorabilia had similar language to the Boy Scouts of America dialog. The Beagle Scouts started in 1974. The below Compass and various memorabilia was supplied at the 2023 Comic Con in San Diego, California. It was to celebrate the 50 Anniversary of Beagle Scouts. 1974 to 2024.	The compass at left was made by Sybron which was a successor of TAYLOR. Taylor Instrument became part of Sybron Corporation in 1973. Sybron Corporation sold Taylor Instrument in 1983.  This compass is dated after May 13, 1974 until sometime in 1983.

OTHER  YOUTH  ORGANISATIONS
- Wandervögel (German Empire and "Republic of Weimar" 1896-1935)
This hikers organisation (see Wikipedia) chose in the late 1920's the compass type ORION made by KRÖPLIN.

- Young Pioneers (Communist East-Germany)
Special issue about "hiking with compass and map" of the Official booklets for school boys and girls and for the youth organisation Junge Pioniere (young pioneers*) in the former German Democratic Republic, GDR). The title printed in red Fröhlich sein und Singen means 'Being happy and sing'. The compass model featured in the document is the early marching compass made by FPM called Handkompass. Note the girl standing behind the three boys, as if purposely kept off the orienteering task.

* Characteristic: blue scout scarf. See also Tourist

Back to ALPHABETICAL SEARCH (Pocket compasses)

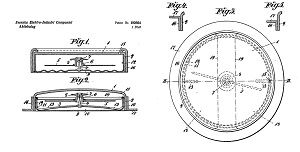

SEL

SEL (Signalling Equipment Ltd) was (with Merit) one the trading names of J & L Randall Ltd. a British toy manufacturer, based in Potters Bar, which was in Middlesex until 1965 and then in Hertfordshire. The company flourished in the 1950s and 1960s and placed regular advertisements in Meccano Magazine.
(Source: Wikipedia)

(Pictures by courtesy of eBay seller fzibuffy)

(Click on picture for enlarged view)

Technical Data - Diameter: 38mm - Depth: 16mm - Weight: 17gr

Back to ALPHABETICALSEARCH (Pocket compasses)

SELSI

Selsi Company, Inc. is a U.S. importer and retailer of instruments. More info click HERE. See also Wrist Compasses.

(Click on the pictures for enlarged view)

Simple pocket compass probably made in the 50's or 60's. Composed view of the compass catalogue

Technical Data - Diameter: 1-3/4" ( 45mm) - Depth: 11mm - Transit lock: the screw's end depresses the lever when tightening - Markings: SELSI USA. SELSI imported the compasses from France (manufacturers: Houlliot and S-L)

Back to ALPHABETICAL SEARCH (Pocket compasses)

SHORT & MASON

Former British manufacturer (for more information click HERE). Short & Mason produced in the early 1900s some of the compasses better known through their later TAYLOR versions (more infos in the book Compass Chronicles - see LINKS) and various instruments for Abercrombie and Fitch.

MARK V pattern Click on the pictures for enlarged view

The compass capsule is attached to the casing by two screws accessible from the rear side (picture below)

Technical Data - Diameter: 45mm - Depth: 15mm - Weight: 50gr - Card: aluminium, Singer's pattern Markings on the lid: SHORT & MASON Ltd LONDON V   /   11764    /    1914

Note the marking "English Make" on this version of the TELAWAY model produced by TAYLOR Picture by courtesy of E. Larke Click on the picture for an enlarged view

Instrument made for Abercrombie & Fitch (see engraving inside lid) Picture by courtesy of W. Cecil Click on the picture for an enlarged view

Back to ALPHABETICAL SEARCH (Pocket compasses)

SIMMS, J. & G.

James and George SIMMS were English compass makers. J & G Simms (1820 – 1855) had premises at 4 Broadway, Blackfriars, and at 9 Greville Street, Hatton Garden in London. Francis Barker learnt his trade there and was the compass maker for J & G Simms in 1842 when this compass was made. Francis Barker eventually bought the company in 1855 after both brothers had died. This item was made for C. W. DIXEY, Opticians to the Queen.

Click on picture above for enlarged view Photographs courtesy Trademarklondon.com

Hallmarks and signature: JS and GS

Technical Data Long-neck compass type - Diameter: ... mm - Depth: ... mm - Weight: ... gr - Dial material: enamel

Back to ALPHABETICAL SEARCH (Pocket compasses)

SINCLAIR

James A. SINCLAIR & Co. Ltd (pic. Graces Guide) was a British manufacturer of photographical equipment (model Tropical Una) and a well-known photographer and the author of a manual. He was a retailer for scientific instruments (signed SINCLAIR HAYMARKET LONDON). He died 1940.

SINGER

Samuel Berry SINGER was a Master Mariner. He invented the compass rose design which was named after him (more information HERE). The most luxurious pocket compass we know of and featuring this card design was manufactured by Walter Thornhill.

SINGER & SÖHNE

Joseph SINGER & Söhne (located in Villingen in the Black Forest) was a German manufacturer of precision instruments. The company was created in 1893 and compass production ceased in 1945. During WWII, they also built marching compasses for the Wehrmacht soldiers (see letter below). Their civilian compasses were offered in the catalogues of C. Stockert & Sohn and of Eschenbach.

	Technical data Dia.: 2 in. / 50mm The small declination arrow points towards 340° (i.e. 20° west) but this value was correct c. 100 years earlier! Another model (link to pic) features luminous Radium paint markings and an updated declination value of only 10° west.	Pic. by courtesy of F. Liebau	Drawing of the compass on a letter sent to C. Stockert & Sohn (click on the image for full view of content) Document reproduced by courtesy of Frank LIEBAU, visit his web site Die Kompassmacher
	Click on images for enlarged views	Technical Data - Dia.: 43mm - Height: 14mm - Poids : 40g - Cardinals in German - Upper crystal: magnifying glass The bearing pointer is a metallic tab connected to the bezel	Transparent map compass featuring the company's logo above the north N. © J. Grobovsek

S-L (Société des Lunetiers)

Former French company (for more information click HERE). See also SURVEY COMPASSES.

360 degrees version: - Luminous paint - Made in France indication (by 70 deg) See also ballooning	400 grades version: - Additional red line on back plate turned by 90 deg. against the arrow - Formerly self luminescent radium paint compound (now turned orange)	Comparison of the casings: black or chromium-plated. The chromium-plated items with 400 grades division feature two transparent back plates, each with two engraved diameters (eight radii together).
Technical Data - Diameter: 54mm - Depth: 12mm - Weight: 54gr - Case: brass, blackened or chromium-plated - Crown: aluminium or brass, chromium-plated (Click on the pictures for enlarged views - excepted side views)	Original box with the company's logo : the letters S and L on both sides of a symbolized candelabra, white on green background (for more details, see this company's profile).	The models above can be seen on a postcard used to order items (on reverse) together with a wrist compass and a Muller & Vaucher pocket compass (top, centre).

Back to ALPHABETICAL SEARCH (Pocket compasses)

SOUCHIER

The French Colonel SOUCHIER*, in command of the 103rd Rgt. d'Infanterie in Paris, invented a marching compass (boussole militaire directrice) which appears under his name in the 1907 issue of the most important French retailer for metallic products (armes et cycles / fire arms and bikes) MANUFRANCE. He had an agreement with Henri Houlliot for manufacturing and selling his compass. They planned to build two versions: "one  with a rotating base plate so that it could be used as a marching compass, and one without". This instrument is designated boussole directrice (marching compass) but we decided to present it in this section (pocket compasses) because of its shape.

* He is also known for having invented a range finder (télémètre).

		Sighting via the prism	Left: Prototypes in steel and brass casing of various diameter. One modell features in addition to the transit lock a tube the function of which is unknown. Below: marching course arrow on the base plate and lateral transit lock.
Manufrance catalogue (1907)	1st page of the Souchier- Houlliot agreement (1906)	Description of the compass in the agreement (excerpt) "M. Souchier entitles M. Houlliot to manufacture and sell the compass invented by himself and consisting of a rotating divided circle upon which a crystal lid is attached. The crystal features: 1st: a 45° inclined surface working as a mirror and 2nd: opposite to this mirror a magnifying glass glued onto a flat portion of the crystal: this crystal has the same function as the prism in the KATTER [sic] compass."	Technical Data - Gradation: 400 French degr. - Diam.: 48mm - Weight: 85g Description and user instruction (copies avialable). Note: All documents communicated by M. Michel Collignon.

SPEAR

Mathematical Instruments maker and Optician - 1791 - 1814 at 29 Capel Street, Dublin and also 27 and 35 College Green, Dublin

Technical Data - Diameter: ... mm - Depth: ... mm - Weight: ... gr - Compass rose: enamel (Click on the picture for enlarged view Picture sent by a visitor)

Back to ALPHABETICAL SEARCH (Pocket compasses)

S&W

see (top of page) Schwab & Wuischpard

STEWARD

J. H. Steward Ltd was a British manufacturer (more information HERE). See also Wrist, Marching, Survey and Nautical compasses.
Early Version of the famous VERNER's pattern compass.

Picture by courtesy of Doug Carter Click on the image for an enlarged view

Technical Data - Diameter: 45mm - Thickness: 18mm - Compass card: Balmain paper (see menue Miscell. / Terminology) - Manufacturer's data printed on the card:     J.H. Steward, 406 Strand, London     Copyright     Col. Verner's Sergeant's Compass

Pictures by courtesy of Cl. Seldon Click on the images for enlarged views

Click on ithe mage for a view of both sides

Type designation THE RAWLINSON - POCKET NIGHT MARCHING COMPASS Technical Data - Diameter: ... mm - Thickness: ... mm - Case background illumination: Balmain paper (see Terminology) made luminous by the stripe of luminous paper in the lid. - Manufacturer's data engraved on case bottom     J.H. Steward, 406 & 407 Strand, London

Back to ALPHABETICAL SEARCH (Pocket compasses)

STOCKERT (C. Stockert & Sohn)

C. Stockert & Sohn was a German manufacturer (more information HERE and on this company's website stockert-sohn). In the 1960's, there was a tight cooperation with the other two compass manufacturers located of the vicinity (in the cities of Fürth and Nuremberg) and the catalogues of C. Stockert, PASTO and Wilkie weren similar in respect to form and content.
See also Marching Compasses Stockert  ("S") and antique Sundials.
The following items are only a few examples from the vast 1910 catalogue (photocopies available).

Technical Data - Dia.: 52mm - Thickness: 12mm - Weight: 50gr The marching direction arrow located under the crystal could be set via the knob on top.  This type appears in the 1938 catalogue (item no. 607 below) and in a 1956 dictionary (top r.).	This instrument is also a small marching compass: The arrow can be set via a tiny five-branch-star-shaped wheel. The luminous markings are made of tiny pieces of special  Balmain paper. Technical Data - Dia.: 46mm - Thickness: 14mm - Weight: 38gr	Catalogue in three languages* (DE, EN, SP) dated 1910 The wrist compass above contains a pocket compass featuring the same design as the one in cell 1 at left. * A fourth one (French, w/o pics, 4 p.) also exists as well as the relevant Price list (for pic: click on image below):
"Map compass" (see Price list. no. 8). Description: click on image at right. See also transparent "Glass" compasses. Engraving on the rear side of the S (South): DRGM (see Miscellaneous/ Terminology/ Abbrev.).	The needle's transit lock is an Exzenter actuated via the knob in the loop. The German catalogue used French names and this knob was called in the Price list remontoir (crown) like for a watch. The needle's pivot is located in the centre of a wheel-shaped structure on which the cardinals and the graduation are engraved. Compare with the BUSCH model no. 3362 on which they are printed on the glass bottom.	Browse through the catalogue: P. 2-3, p. 4-5, p. 6-7, p. 8-9, p. 10-11, Additional pages (w/o description). Note about p. 10, item no. 821, replaced image: This compass called in French  "boussole directrice" was manufactured and supplied by HOULLIOT. See also the 1930 LUFFT catalogue (no. 1745).
	Box compass No. 620 and foll. in the catalogue - Descr. in German, English and Spanish: click on image at left - Descr. in French HERE	Technical Data - Dia.: 45mm - Height (with lid): 12mm Six dia. were available: 25 - 50mm
Compass with transparent bottom. Item belonging to numbers range 57x. Collection of the company C. Stockert & Sohn	Items no. 6 and 7 (catalogue 1910) Pictures courtesy Frank Liebau (www.die-kompassmacher.de)	Description no. 6 and 7
Picture courtesy of S. Beck	View of the 1910 catalogue (Click on image for enlarged view and descr. in 3 languages)	Model versions 812-817 Dim.:   - compass Ø : 30 mm - mahogany box: 80 x 75 x 25 mm

SYMONS

George James Symons of Camden Square in the county of Middlesex filed a patent in 1875 for a compass the magnetic needle of which could be adapted to different values of the local declination. It was implemented in a pocket compass made among others by CASELLA and called TRUE NORTH. A lapel compass was produced under the name Tru Nord by Marble's. A True North pocket compass was also signed by Lennie.

Back to ALPHABETICAL SEARCH (Pocket compasses)

- T -

TAYLOR

Due to the large range of its production, a specific chapter was created for this manufacturer.

Tell-tale compass

Tell-tale compasses can be read upside down. They are described in the section Nautical Compasses but this system has also been applied in at least one beautiful instrument. The needle has two pivots and the caps are in the base and on the cross bar (under the crystal). This feature is similar to the compasses with glass on both sides, where an indentation on each glass acts as a cap (compare with charm compasses in the SHOP and a Japanese transparent compass).

Pictures courtesy M. Chambers (Click on the images for enlarged views)

Technical Data - Diameter: ? - Divisions: quadrants - North symbol: fleur de lys - Bar needle with two pivots, caps in the base and in a cross bar.

Back to ALPHABETICAL SEARCH (Pocket compasses)

TERRASSE

Terrasse W. Co. was together with Barker and Dennison an important British compass maker during WW I.
Mark VI Pocket compass. The reference book THE PRISMATIC COMPASS describes this instrument as follows:
"This compass is of the watch type (...) and has recently been improved. It differs from the Mark V in that the dial is graduated every five degrees instead of points of compass and figured every 20 degrees. Also the North point is marked with a radium-painted luminous arrow, the E. W. and S. points by luminous dots. Instead of the lubber mark, a black hair line is drawn across the glass, near the ends of which are radio-luminous marks, one end being arrow-shaped."

(For more details click on the picture)

Mark VI compass Technical Data - Diameter: 43mm (1 9⁄32") - Depth: 11mm - Weight: 28gr

Back to ALPHABETICAL SEARCH (Pocket compasses)

TfA - Technische Fabrik für Armaturen

Former German company created in 1964 by Heinz  DOSTMANN, located in 6984, Reichsholzeim / Tauber.
They retailed compasses made by WILKIE and also imported from France (see letter to Houlliot below). Products: cheap low-tech compasses.

The abbrev. TfA appears on the english-printed side of the box while the German face refers to DOMATIC. The rose-of-the-winds-shaped logo is obviously WILKIE's.

Technical Data - Dia.: 38mm - Height: 11mm Brief von TfA an Houlliot:

Back to ALPHABETICAL SEARCH (Pocket compasses)

THALSON

THALSON was a San Francisco-based U.S. retailer of small firearms and other outdoor gear. This instrument was manufactured by an unknown Japanese compass maker and it appears in a TOKYO COMPASS MFG. Co. Ltd. catalogue (no. 325 in the Camping Equipment section).  Anothervery simple one was made in Germany, probably by PASTO.

(Click on the pictures for enlarged views )

Technical Data - Diameter: 47mm  - Depth: 11mm

Picture courtesy M. Vera  (worldofscoutingmuseum.org)

Back to ALPHABETICAL SEARCH (Pocket compasses)

THORNHILL

This item was manufactured by Walter Thornhill, a manufacturer to the Royal Family. This luxurious pocket compass was offered as a Chistmas gift to Edmund Clerihew BENTLEY in 1878.

Click on pictures for enlarged views Pictures and information courtesy P.C. / trademarklondon.com

Technical Data Case material: 18ct yellow gold, made in London 1878, marked: W.T. (click HERE for pictures of W. Thornhill's hallmarks) Monogram on the lid: 3 initials, E. C. B. Diameter: 55mm Weight: 95g Spring lid, flush hinge Card: mother of pearl Singer’s patent. Inscribed inside the lid:  XMAS 1878 (Xmas abbreviation was in use from the 1500s).

Back to ALPHABETICAL SEARCH (Pocket compasses)

- U -

U.S. Gauge Co.

U.S. Manufacturer created in 1904 in Sellersville (Pennsylvania), later located in New York, now part of AMETEK.  See also category Wrist compasses.

(Click on image for detailed view)	Inside the box, instruction concerning the transit lock. (Click on the links to see the pictures)	Technical Data - Diameter: 2" / 50mm - Thickness: 10mm - Weight: 45gr - Divisions : 360°, clockwise - Inscription in a Malta cross, on the face's south side: U.S. Gauge Co. N.Y.
Girl and Boy Scout official compasses (Click on the images for detailed view)	Box of the Boy Scout official compass See also TAYLOR (above) and SILVA	Technical Data - Diameter: 2" / 50mm, thickness: 10mm - Weight: 1½ oz. / 45gr - Divisions : 360°, clockwise - Inscription hidden below the case rim: AD - 5246 - Made in U.S.A. by U.S. Gauge Co. N.Y.

Back to ALPHABETICAL SEARCH (Pocket compasses)

- V -

VERPIOT

PROFILE - Former French manufacturer, successor of Guyomard created in 1890, located 14, rue de la Corderie (Paris 3e).
Verpiot supplied other manufacturers like Houlliot (see below: Houlliot's request for Verpiot's price about item 100 for exporting to USA & Canada) and retailers.

Technical Data - Dia. : 40mm - Height : 12 mm

Catalogue for the 1930's (10 p.)

Houlliot's request & Verpiot's answer (1938)

VONIN

Jacques VONIN was a small French company (located 254, Boulevard St. Germain Paris - agent for CHARRON Ltd and DARRACQ cars).
The Online Compass Museum was given a complete technical-commercial study* drawn up in 1915 and covering the design and manufacture of a pocket compass with Radium paint markings. The instrument described therein has some similarities with the compass model used by the infantry men in the trenchies during WW1. This study was apparently not followed by a series production, but some samples were sent to potential partners in Italy (Milan and Turin). Furthermore, advertisements were printed in Paris newspapers in March 1915 (see picture), then in Italy (June 1915).
It is therefore possible that some items may still exist today. A user's instructions note was also printed bearing a much simpler design than the original project and design eventually chosen by the French War Ministry (no marching course setting arrow; compare with the instruments displayed in the article on MORIN). The aim was to manufacture a cheaper instrument than the Bézard-type compass sold in France during the same period by Auricoste. Since this item is now completely forgotten, the story must have ended abruptly: in a letter, M. Vonin is summoned to accept a delivery and to pay for a "great quantity of ordered compasses"…

Technical Data
Four different models were planned: A/AL and B/BL (L = lumineuse, i.e. with several Radium paint marks) from the totally simple one without loop, transit lock, Radium markings and with a cheap brass needle cap, to the full model with all features plus an agate cap and a lacquered case.
Common features: paper dial, 30mm diameter, bevelled crystal. A leather strap was also offered for wearing as a wrist compass.

* Contributed by Mr François-Xavier Bernard who wrote a comprehensive article (in Italian language) in the review MILITES, issue no. 35  of Mai/June 2009 (pdf copy available on request).

Back to ALPHABETICALSEARCH (Pocket compasses)

VTD

Former Czechoslovakian manufacturer established in 1926 in Kbely called Vojenské Telegrafní Dílny (VTD) i.e. Military Telegraph Workshops, which became later PAL a. s. On the reverse side: the abbreviation TEL (Telegrafní vojsko = Army Telegraph) and the figure 37 on either side of a heraldic lion, the coat of arms of the Czechoslovakian Army, which also appears drawn within a lozenge (see Cardinal points / Czech).

Technical Data - Dimensions: 40 x 40 x 7mm - Weight: 34gr - Divisions: 360°, clockwise - Marking on the dial:  VTD, Vojenské Telegrafní Dílny i.e. Military Telegraph Office - Radium paint markings: on the needle's Northern end and above the letter S (sever = North) - Leather pouch (link to picture) (Click on the pictures for detail views)

Back to ALPHABETICALSEARCH (Pocket compasses)

- W -

WALTHAM

US watch manufacturer. See also category Wrist-top compasses

Technical Data - Diameter: 45mm - Depth: 13mm - Weight: 28gr

Back to ALPHABETICAL SEARCH (Pocket compasses)

WILKIE (Wilhelm Kienzler)

Former German company (for more information click HERE). In the 1960's, there was a tight cooperation with the other two compass manufacturers of the vicinity (Fürth and Nuremberg) and the catalogues of C. Stockert, PASTO and Wilkie were similar in respect to form and content.
Export versions of some models had a designation like WANDERER or HUNTER (see below).
See also the categories marching, nautical, wrist and geological compasses.

Early model with transparent fluid capsule	(Pic at left) Technical Data - Diameter: 42mm - Depth: 15mm - Weight: 32gr (Click on images for enlarged views)	Above: transparent map comoass with direction arrow catalog no.  F45 CTM (1975)
USA catalog	At right: Model displayed in the 1975 catalog, identical to a former PASTO product (In addition in the enlarged view a compass called RANGER)

Early model D45 (c. 1960's). The grey colour is due to the decaying luminous paint (Click on the pictures to view details)	Model D45 - cat. no. 1234 C, 1970's	Technical Data - Diameter: 45mm - Depth: 13mm - Weight: 39gr NOTE: These compasses are only a few examples of a vast catalog. The reference numbers refer to the German catalog. Compare with the catalog above for US numbers.
Model SMD45/Fwith course marking pointer. It could be set from above through the crystal. Export version: red needle and pointer. Inscriptions, on face: HUNTER EDGE; on lid: "Liquid filled" (1960)	Model SDM45, 1970s. An export version (USA) was called WANDERER. The early version had a hole in the lid for the protruding knob. See pic. at right - courtesy Steve Bell (Click on the pictures to view details)	Technical Data - Diameter: 45mm - Height: 13mm - Weight (dry): 37gr - Weight (fluid): 50gr

Back to ALPHABETICAL SEARCH (Pocket compasses)

WILKINSON-EAST

Pocket compass designed by Wilkinson-East (?) and made by Elliott Brothers., London approximately at the very beginning of the 20th c. (link to pic of inscription on the bottom dated 1903).  The compass can be carried in a casing featuring a black line on the bottom. Either side of the compass can be placed on top.

Pictures courtesy Mark (Click on images for enlarged views)

Technical Data - Dia.: 38mm - Depth: 14mm - Divisions: 360 degrees on one face, only cardinals on the other - Link to a view of the instrument dismantled

WITTNAUER

U.S. watch maker who produced compasses in cooperation with the famous Swiss watch maker Longines.  Wittnauer was Longines agent during WW ! The Longines Wittnauer Watch Company (LWW Co.) was created in 1936.  More information HERE.

The standard Army model. There was also a version with radium paint markings (click to enlarge)

Technical Data - Diameter: 45mm - Depth: 12mm - Weight: 50gr - Manufacturer: Longines-Wittnauer (see box - top right, click to enlarge)   Below: Case reverse side  (MFR'S = Manufacturer's)

WOODMAN's compass

Large compass with no manufacturer's name. The arrow with the fancy feathers is painted under the crystal and cannot be rotated to indicate a marching course. It always points to the zero marking (North). In the advertisement it is called a Woodman's compass. The cylindrical pendant features two serrated rings. This is the only compass we know of with this feature.

Pictures by courtesy of C. Forsythe Click on the images for enlarged views

Pic. courtesy K. Takacs / Compass Chronicles Ad published in 1902

Technical Data - Dia.: 2.75"/ 70mm - Weight: 9 ozs. / 250gr - Somes items are marked "France" (link to pic.), not "Made in France"). This model may have been produced by Houlliot and exported to the U.S.A.

Back to ALPHABETICAL SEARCH (Pocket compasses)

WOTTON & SHERRY

Wotton & Sherry of Gwelo, Rhodesia (Now Zimbabwe) – Rhodesian retailer that had compasses made by Barker in London around 1870s. Their shop was much-used by British explorers who were starting to colonise Rhodesia.

(Picture by courtesy of Trademarklondon.com - click to enlarge)

Technical Data - Diameter: mm - Depth: mm - Weight: gr - Manufacturer: F. Barker & Son (triangular logo punched in case)

Back to ALPHABETICAL SEARCH (Pocket compasses)

X - Y

VARIOUS UNIDENTIFIED COMPASSES

We display here several compasses without manufacturer's name and coming from different countries.

(Click on image for enlarged view)	(Pictures courtesy TradeMarkLondon.com)	This sort of pocket compass is usually  called  Long neck because of its ring attachment. This one is particularly rare because it features a floating card consisting of a thin mica sheet between two sheets of paper. The whole is glued onto a magnetic needle. It is balanced by means of wax applied on the underside with the finger (compare with ADAMS, SIMMS, SPEAR above and MISCELLANEOUS / Cardinal points). Technical Data - Diameter: 40mm - Length: 60mm - Date: c. 1840 ?
(Click on image for enlarged view)	Floating skeleton-style compass card (compare with F. Barker & Son) (Picture courtesy TradeMarkLondon) Technical Data - Diameter: ... mm - Depth: ... mm - Material (casing): silver Back to ALPHABETICAL SEARCH  (Pocket compasses)
	China or Japan, early 20th c. Explanation of cardinal points: see MISCELLANEOUS. (Click on image for enlarged view)	Technical Data - Diameter: 38mm - Height: 8mm - Weight: 18gr
Technical Data - Diameter: 44mm - Depth: 10mm - Weight: 40gr	Image above and at left: Denmark or Norway, early 20th c. On reverse: KOLUMBUS / E.G. BERGMANN Back to ALPHABETICAL SEARCH (Pocket compasses)	Germany, early 20th c. Technical Data - Diameter: 40mm - Depth: 10mm
Probably a HOULLIOT-made export version (featuring cardinals in Russian language) Technical Data - Diameter: 40mm - Depth: 12mm - Weight: 25gr	Probably a LUFFT Export version (featuring cardinals in Czech language) Technical Data - Diameter: 40mm - Depth: 10mm - Weight: 23gr	Highly probable maker: F. Barker & Son Technical Data Dia.: 37mm / Height: 12mm Weight: 30gr / Divisions : card. in German Case silver-plated inside and around the capsule. SINGER-type face, in addition, letter N with red paint. Another red mark across the figure 6 in 360. Bar needle with counterweight.
(Click for enlarged view) Back to ALPHABETICAL SEARCH  (Pocket compasses)	Pocket compass with snap-on lid France or Belgium, early 20th c. Lid engraving: MINISTERE DE LA GUERRE (Department of War)	Technical Data - Diameter: 54mm - Depth: 17mm - Weight: 110gr - Cardinal points : French The marching course arrow can be rotated by means of the serrated disc  at the rear face.
	Germany, early 20th c. The southern cardinal points are displayed in red. The needle pivot cap is made of a hollowed natural pearl. The box outer surface is chrome plated. The rear face features a mirror (see also the opera glasses in the category OTHER COMPASSES). (Click on the picture for an enlarged view)	Technical Data - Diameter: 40mm - Depth: 12mm - Weight: 18gr - Rose: cardboard
	England, late 19th c. The North mark typically was a heraldic lily. The cardinal points read as follows: NEbE = North-East by East (Click on the picture for an enlarged view)	Technical Data - Diameter: 35mm - Depth: 12mm - Weight: 12gr - Rose: cardboard

Back to ALPHABETICAL SEARCH (Pocket compasses)

- Z -

ZEISS IKON

The logo of this famous German camera appears on these compasses which were in reality made by HOULLLIOT (source: company's archives). This compass (without attachment ring) was maybe meant to be carried in a wrist band (see this category) or fixed inside a large device.

Logo and side view. The needle's transit lock mechanism is actuated by turning the lid against the casing by a 1/8th of a turn.

Technical Data Brass, ebonised, approx. 1920 - Diameter: 37 mm - Depth: 11 mm - Weight: 28 gr Picture at right courtesy M. Collignon

Back to ALPHABETICAL SEARCH (Pocket compasses)

- Z -

Z.U.P. (ЗУП in cyrillic letters)

Abbreviation of the manufacturer's name Zavod Uchebnikh Priborov (Factory for Educational Instruments, in the former USSR)
During the Soviet era this USSR company also built compasses for the RED ARMY (AURKKA).
See also Wrist compasses.

(Pics sent by visitors) Two comparable items made by other manufacturers

Technical Data - Diam.: 45 mm - Height: 14 mm - Divisions: 360°, s.also MISCELLANEOUS/ Cardinals / Russia - Date (on face): 1940 - Material: bakelite
